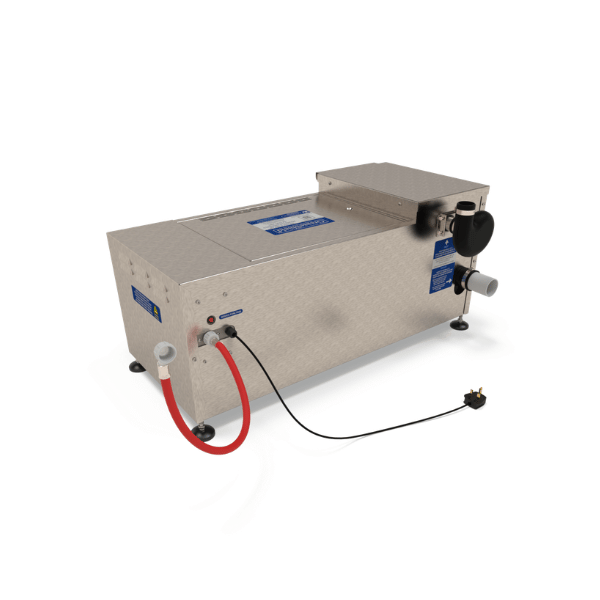

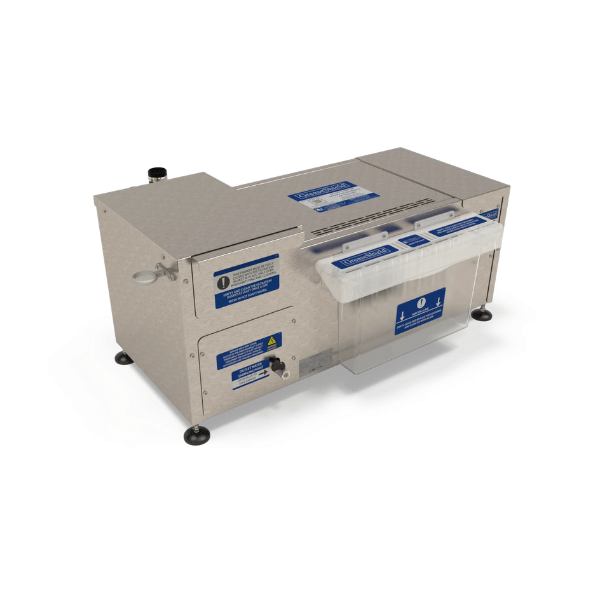

Automatic grease recovery unit with a drawer pre-filter for solid waste separation, a 2.0 L/s pro-active flow rate, and PLC-controlled FOG removal for commercial kitchens.

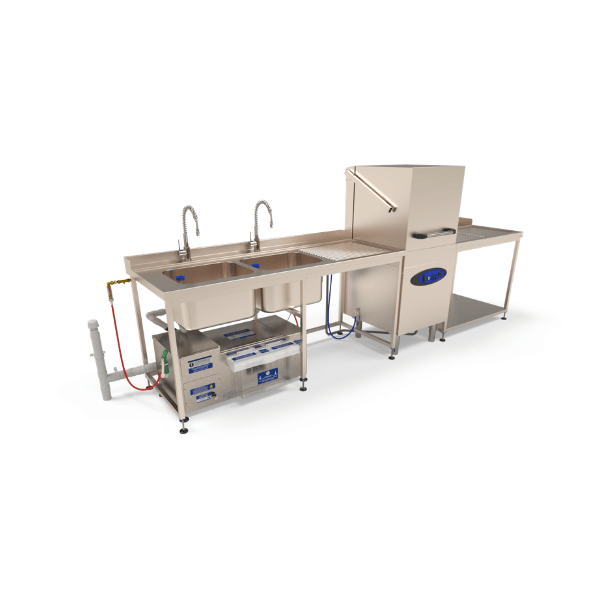

Applications:
- Two Bowl Pot Wash Sinks
- Pre-Rinse Sinks
- Hood Dishwashers
Flow Rates & Certification:
- Pro-Active Flow Rate – 2.0 Litres per second
- Solid Waste Retention Capacity – 6.5 Litres
Standard Features & Functions:
- Automatic FOG & solids removal

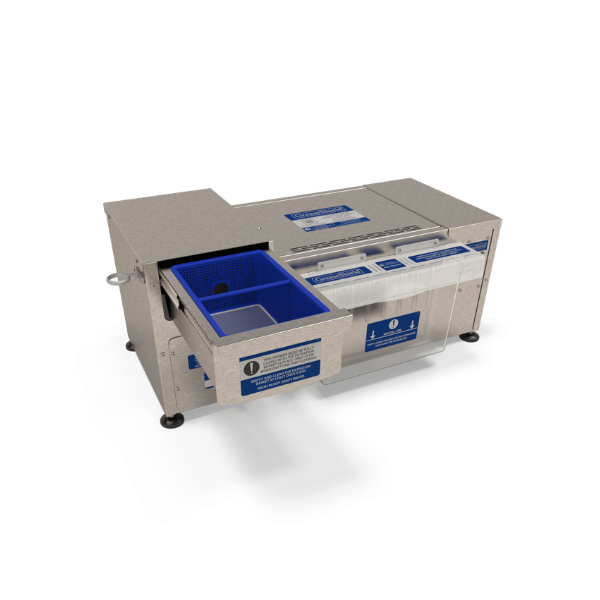

- Drawer Pre-Filter for solids waste separation and retention
- Filtration Basket with a 0.7mm fine mesh base, for smaller particle retention
- Self cleaning
- Magnetic baffle for bioremediation
- PLC controlled
- Non restricted Vortex Flow Control device
- Reverse flow configuration
- Grey water recirculation
- Globally certified award winning technology
- The only Green Certified grease trap in the world
Plumbing Connections:
- Drawer Pre-Filter Inlet: 1.5″/40mm
- Outlet: 2″/54mm
- Decant Outlet: ¾″/18mm
- Hot Water Solenoid: ¾″/22mm
Electrical Ratings — UK, EU, AU, NZ
- Voltage: 230v
- Frequency: 50Hz
- Current: 0.49A
Average Power Consumption: 15.8W Per Hour
